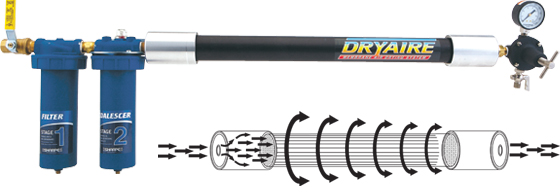

Dryaire Membrane System
Model 6770
Advanced air drying technology for shop use. Lightweight, easy-to-install, and simple-to-operate, the Dryaire Membrane System maintains –40°F dew point while achieving 0% compressed air humidity. It removes oil and sub-micron particles down to .01 micron.
- Stage 1 filter provides removal of water and contaminants down to 5 microns
- Stage 2 coalescer provides removal of oil and sub-microns particles down to .01 microns
- Stage 3 membrane dryer is maintenance free, no regeneration required
| Part Number |
Description |
| 6770 |
Membrane System |
| 22645 |
Stage 1 Replacement Filter Element |
| U23075 |
Stage 2 Replacement Coalescer Element |
| 1-6770-3 |
Stage 3 Replacement Membrane |
| Air Inlet, NPT |
1/2" |
1/2" |
1/2" |
| Air Outlet, NPT |
1/2" |
1/2" |
1/2" |
| Air Flow Capacity |
115 CFM (3.2 m3/min) |
70 CFM (2.0 m3/min) |
30 CFM (0.85 m3/min) |
| Max. Operating Pressure |
175 psi
(1.2 MPa, 12 bar) |
175 psi
(1.2 MPa, 12 bar) |
175 psi
(1.2 MPa, 12 bar) |
| Max. Temperature |
150ºF (65ºC) |
150ºF (65ºC) |
175ºF (79ºC) |
Note: For the overnight drain to operate, turn off the air pressure.
